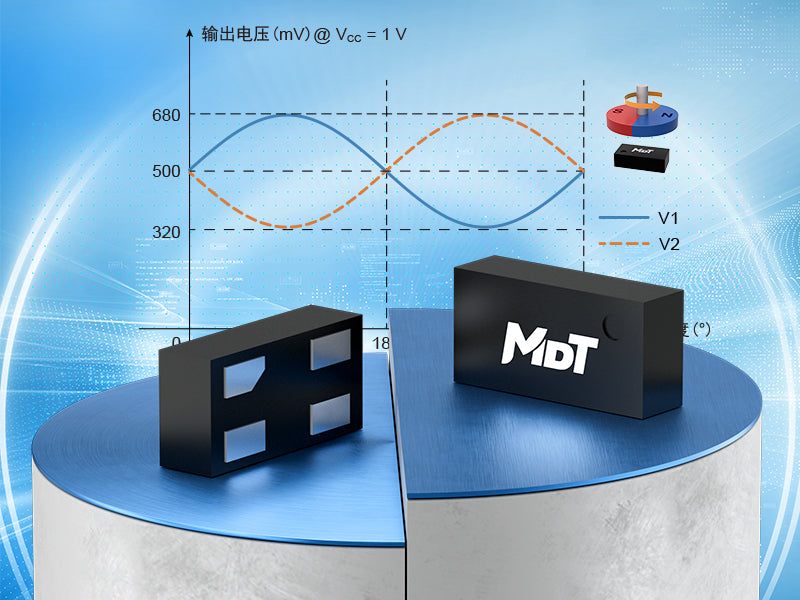

TMR3016 | Analog TMR Angle Sensor
TMR3016 contains a push-pull Wheatstone bridge, which is composed of four high-sensitivity tunneling magnetoresistance (TMR) elements. The sensor outputs a sinusoidal signal, and the period of this signal corresponds to a 360° rotation of the magnetic field direction within the sensing plane, independent of the externally applied magnetic field strength. TMR3016 uses a compact DFN4L (0.8 mm × 0.4 mm × 0.23 mm) package for easy assembly in small spaces.
Features and Benefits |
|
| Tunneling magnetoresistance (TMR) technology | Wide range supply voltage |
| Analog differential output | Excellent temperature stability |
| Adapt to large air gap | Compact DFN package |
| RoHS & REACH compliant | |
Applications |
|
| Angular position sensing | Linear position sensing |
