TMR265x
High Frequency Response Programmable TMR Linear Magnetic Sensor
MDT magnetic sensors are widely applied in industrial applications including smart meters, liquid level sensors, pneumatic cylinder sensors, inverters, CNC machines, robotics, AGVs, servo motors, and more.
Part Number: TMR1304 Type: Omnipolar Supply Voltage: 1.8 V to 5.5 V Power Consumption: 1.5 μA Sensing Direction: X-axis Bop (25°C...
View full detailsPart Number: TMR1302 Type: Omnipolar Supply Voltage: 1.8 V to 5.5 V Power Consumption: 1.5 μA Bop(25°C): ±17 Gs Brp(25°C): ±10 Gs ...
View full detailsPart Number: TMR1362 Supply Voltage: 1.8 V to 5.5 V Power Consumption: 200 nA Operating Modes: power cycling Bop (25°C): ±17 Gs B...
View full detailsPart Number: TMR1202 Type: Bipolar Supply Voltage: 1.8 V to 5.5 V Power Consumption: 1.5 μA Sensing Direction: X-axis Bop(25°C): ...
View full detailsPart No.: TMR1208 Type: Bipolar Supply Voltage: 1.8 V to 5.5 V Power Consumption: 1.5 μA Sensing Direction: X-axis Bop (25°C): 5 Gs ...
View full detailsPart Number: TMR3110Type: Biaxial TMR Angle SensorSupply Voltage: 3.3 V to 5 VAngle Measurement: 360°Field Operating Range: 200 Gs to 800 GsAngular...
View full detailsPart Number: TMR3081 Type: Biaxial TMR Angle Sensor Supply Voltage: 1.0 V to 5.5 V Angle Measurement: 360° Resistance: 4 kΩ PP: 6...
View full detailsPart Number: TMR3005 Type: Biaxial TMR Angle Sensor Supply Voltage: 0 V to 7 V Angle Measurement: 360° Resistance: 6KΩ/140KΩ/1900KΩ ...
View full detailsPart Number: TMR3109Type: Biaxial TMR Angle SensorSupply Voltage: 4.5 V to 5.5 VAngle Measurement: 360°Field Operating Range: 200 Gs to 800 GsAngul...

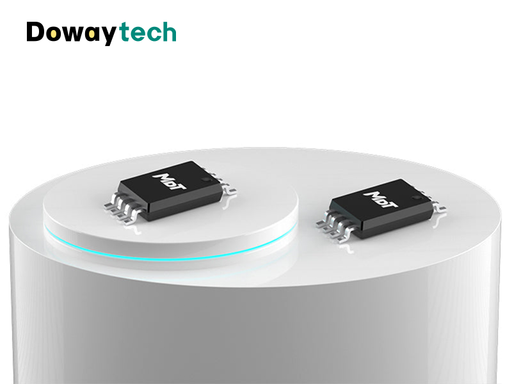

View full detailsPart Number: TMR3022 Type: Biaxial TMR Angle Sensor Supply Voltage: 1 V to 5.5 V Angle Measurement: 360° Resistance: 5 KΩ PP: 0.1...
View full detailsMDT magnetic sensors are found in photovoltaic power generation, wind power generation, energy storage, electric vehicles, charging stations, and more.
Part Number: TMR2651 Bridge Configuration: Full bridge Supply Voltage: 3 V to 5.5 V Sensitivity: 1 to 100 programmable (mV/V/Gs) Sat...
View full detailsPart Number: TMR2104 Bridge Configuration: Full bridge Supply Voltage: 0 V to 7 V Sensitivity: 3.1 mV/V/Gs Resistance: 30 kΩ, 1 kΩ ...
View full detailsPart Number: TMR2102 Bridge Configuration: Full bridge Supply Voltage: 0 V to 7 V Sensitivity: 4.9 mV/V/Gs Resistance: 90 kΩ / 45kΩ ...
View full detailsPart Number: TMR2652 Bridge Configuration: Full bridge Supply Voltage: 3 V to 5.5 V Sensitivity: 1 to 100 programmable (mV/V/Gs) Sat...
View full detailsPart Number: TMR2152 Bridge Configuration: Full bridge Supply Voltage: 0.5 V to 7 V Sensitivity: 0.2 mV/V/Gs Resistance: 7 kΩ Sat...
View full detailsPart Number: TMR7553-C Nominal current: 100 A to 300 A Current range: ±200 A to ±600 A Voltage: ±15 V Accuracy: ±0.3%FS/±0.5%FS L...
View full detailsPart Number: TMR7502-B Nominal current: 500 A to 2500 A Current range: ±1500 A to ±5500 A Voltage: ±10 V to 15 V RL: 10 kΩ Accura...
View full detailsPart Number: TMR7503-D Nominal current: 50 A to 600 A Current range: ±150 A to ±900 A Voltage: ±15 V RL: 10 kΩ Accuracy: ±0.5%FS/...
View full detailsPart Number: TMR7303-D/P1 Nominal current:10 A to 120 A Current range:±25 A to ±300 A Voltage:5 V Accuracy:±1%FS to ±3%FS Lineari...
View full detailsPart Number: TMR7503-C Nominal current: 50 A to 600 A Current range: ±150 A to ±900 A Voltage: 12 V RL: 10 kΩ Accuracy: ±0.5%FS/±2.5%FS Lin...
View full detailsMDT TMR Magnetic Image Sensors are the leading choice for the magnetic anti-counterfeiting information detection of banknotes and other security documents. They detects widths from 5mm to 180mm and features high sensitivity, high resolution, high consistency, and wide frequency response.
Part Number: TMR6306Channels: 6 ChannelOutput: AnalogSensing Length: 60mmRoHS & REACH Compliant See MoreDownload data sheet

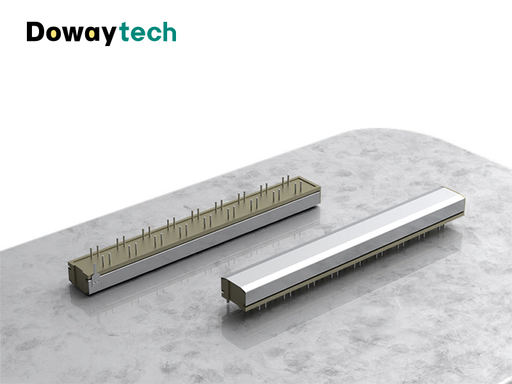

Part Number: TMR6209 Channels: 9 Channel Output: Differential Sensing Length: 90mm RoHS & REACH Compliant See More Downloa...
View full detailsPart Number: TMR6206L Channels: 6 Channel Output: Differential Sensing Length: 60mm RoHS & REACH Compliant See More Downlo...
View full detailsMDT's USB Magnetometers provide high-resolution laboratory measurements, automated data acquisition, and control. They provide a convenient platform for researchers and engineers to explore and develop magnetic applications.

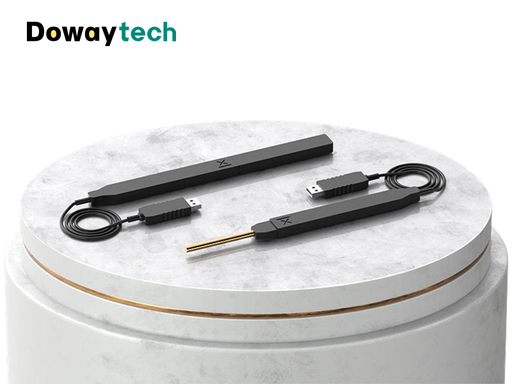

Part Number: USB21023 Measurement Range: -100 Gs to 100 Gs Sensing Direction: X/Y/Z Hysteresis: 0.1 (Fit@±30Gs) Gs Uncorrected Nonlinearity: ...
View full detailsPart Number: USB27053 Measurement Range: -50 Gs to 50 Gs Sensing Direction: X/Y/Z Hysteresis: 0.3 (Fit@±15Gs) Gs Uncorrected Nonlinea...
View full detailsPart Number: USB25103 Measurement Range: -20k Gs to 20k Gs Sensing Direction: X/Y/Z Uncorrected Nonlinearity: 2%FS (Fit@±5kGs) RMS N...
